Two-post hydraulic parking lifts engineered for maximum space utilization. Up to 3,200 kg capacity. Anti-fall locking. Global voltage compatible.
PJS hydraulic vehicle lifting systems are engineered for residential garages, commercial car parks and industrial facilities worldwide. Our two-post parking lifts double your vertical space while maintaining the highest safety standards through precision hydraulic engineering and mechanical locking technology.
Mechanical anti-fall locking engages automatically at operating height. Fails safe — power interruption never releases the lock. Powder-coated structural steel rated for continuous commercial operation.
One-button hydraulic operation with optional IC card access management. Integrated warning alarm system keeps operators and vehicles safe throughout every lift cycle.
Compatible with 110V to 415V, single or three-phase power at 50/60 Hz. Custom platform widths and color options available. Installed and operating on six continents.

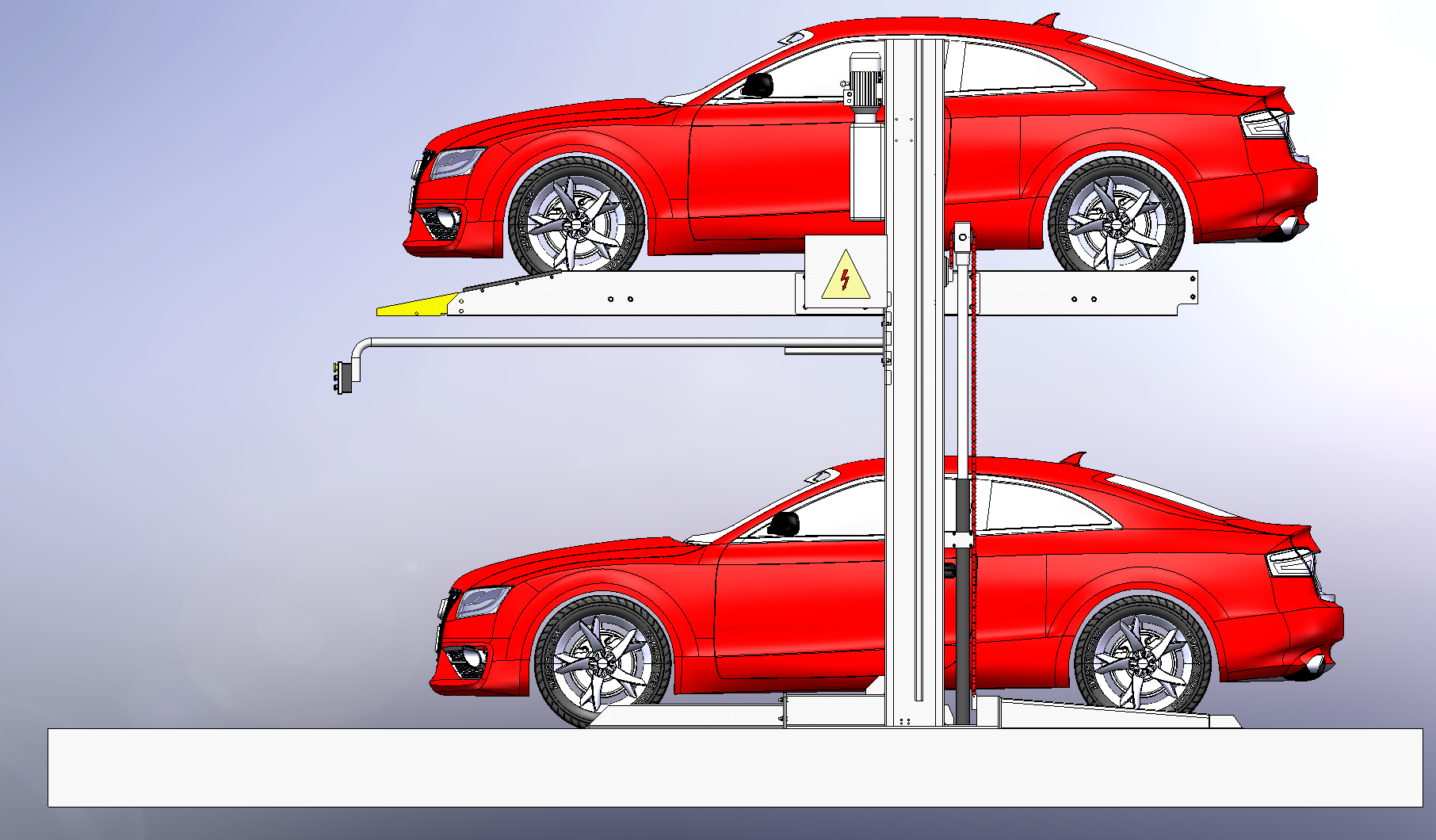

High-resolution 3D renders showcasing all configurations and angles. Click any image to explore in full screen.
Three capacity variants — same proven safety platform, scaled for your load requirements.
| Parameter | PJS-2300 | PJS-2700 POPULAR | PJS-3200 |
|---|---|---|---|
| Lifting Capacity | 2,300 kg | 2,700 kg | 3,200 kg |
| Lifting Height | 0 – 2,100 mm | 0 – 2,100 mm | 0 – 2,100 mm |
| Platform Width | 2,100 mm standard · Customizable on request | ||
| Hydraulic Pump | 2.2 kW | 3 kW | 3 kW |
| Power Supply | 110V – 415V · Single or 3-Phase · 50 / 60 Hz | ||
| Operation | Push-button hydraulic control | ||
| Safety System | Mechanical anti-fall locking (fail-safe) | ||
| Cycle Speed | < 40 seconds full cycle | ||
| Surface Finish | Industrial powder coating | ||
| Optional | IC Card Access · Warning Alarm · Custom Color | ||
Mechanical safety lock engages automatically at operating height. Certified fail-safe — power loss never releases the locking mechanism.
Hydraulic raise and lower with a single button. No complex procedures, no training required. Ready for high-frequency daily operation.
Full lift cycle completes in under 40 seconds, minimizing wait time in high-throughput residential or commercial parking environments.
Electrostatically applied powder coating resists corrosion, UV degradation and mechanical abrasion. Long service life in demanding environments.
Standard 2,100 mm accommodates most passenger vehicles. Custom widths engineered on request to fit your space and vehicle fleet.
110V to 415V, single or three-phase at 50/60 Hz. Ships configured for any regional grid standard — no rewiring required on-site.
Our engineering team will help you select the right model and configuration for your site. Request a custom quote or technical consultation today.
